BORA cooktop extraction systems

Model

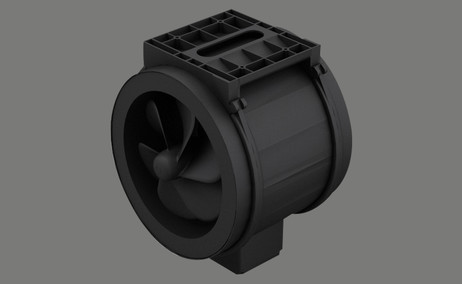

BORA duct fan ULI

VRG

2.31

Article no.

40.001.763.00

Price CHF

1’303.-    O
excl. VAT

Product description

Technical data

Supply voltage
230 V
Frequency
50 Hz
Power consumption
304 W
Maximum current consumption
2,1 A
Maximum ambient temperature
45 °C
Maximum volume
1215 m3 /h
Maximum static pressure
676 Pa
Weight (incl. packing)
6,0 kg

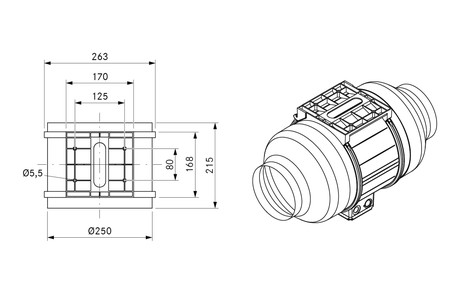

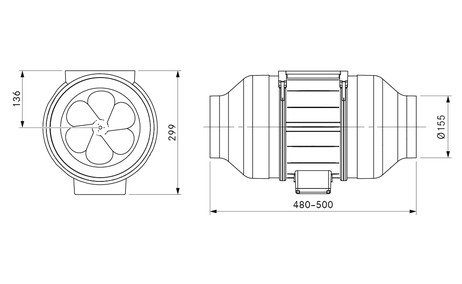

Dimensions (width x depth x height)
263 x 215 (500) x 299 mm
Material housing
Plastic
Connection cable
10 m
Duct connection dimensions
- without reducer Ø 250 mm
- with reduction Ø 155 mm

Product description
- For installation in a round duct system with a diameter of Ø 250 mm or Ø 155 mm when using a duct reducer
- Highest energy efficiency class and low energy consumption (EC technology)
- Stepless power control
- The terminal box can be rotated to the desired position
- Fasteners are to be provided by the customer
- Mounting fastening plate is integrated
- In case of an exhaust air path of more than 6 m length or high pressure losses, the tube fan can be supplemented with another BORA fan module
- In the case of two fan modules in an exhaust air duct system, a minimum distance of 3 m must be maintained between them
- The fan is designed for use with the BORA hob fume cupboards PKA3 and CKA2
- Not suitable for installation in wooden furniture
- Allow at least 3 m distance to the fume cupboard opening and an additional silencer
- The air flow direction is indicated by an arrow on the housing or the fan wheel must point in the direction of the cooktop fume hood when inserting the tube fan

Scope of delivery
- BORA ULI tube fan
- assembly instruction
- Pipe reducer 250-155 ULIRR (2 pieces)

Optional accessories
- Universal extension mains cable EC 10 m UVNLE10
- Universal extension control cable EC 10 m UVSLE10

Translated with www.DeepL.com/Translator (free version)
