Construction type: Euro-Norm 60 cm
GTIN nuber: 8806090955341

Consumption
Energy efficiency class (from A to G): D
Efficiency index: 49.9
Energy consumption per cycle: 0,848 kWh
Energy consumption: 84,8 kWh / 100 cycles
Water consumption per cycle: 10,5 L
Power consumption in off- / standby mode / time preselection / networked standby mode (if available): 0.49 / - / 1 / - W

Performance properties
Duration (program ECO): 210 Min.
Holding capacity (place settings): 14

Cleaning performance index: 1.13
Drying performance index: 1.07
Noise (dB(A), built-in unit): 44 dB(A)
Airborne sound emission class : B

Mounting type
Built-in unit: Yes
Large capacity version: -
Freestanding with worktop:-
Freestanding undercounter: Yes
Countertop installation: Yes
Decoratable: -
Integratable: -
Fully integratable: Yes

Design
Housing color:Stainless steel
Handle: -
Control element: hidden (fully integrated)

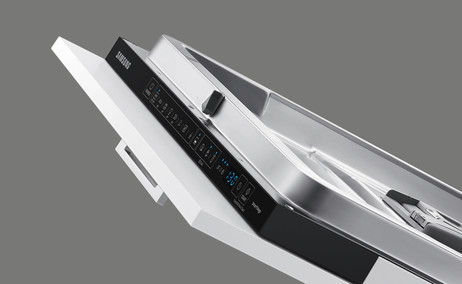

Display and operation
Indicator: Digital display
Display and lighting: LED, Ice Blue
Operation: Touch operation

Interconnection of household appliances
Samsung Smart Home: -

Dimensions

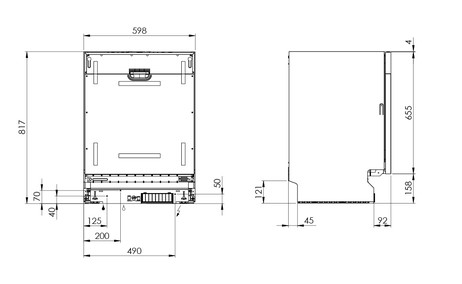

Unit dimensions (H x W x D): 817 x 598 x 550 mm
Height adjustable: 0-60 mm (total height 817 - 877 mm)

Empty weight
Unit weight: 44 kg

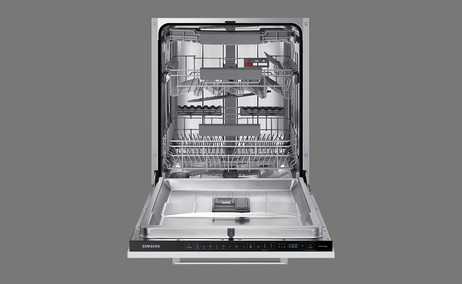

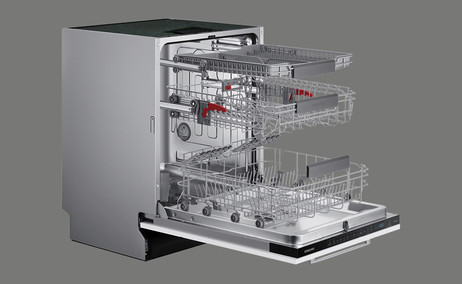

Fittings
Holding capacity (place settings): 14
Upper rack: Adjustable height, foldable cup rows, pull-out handle, glass holder
Lower rack: Fold-down tines for plates, extendable handle

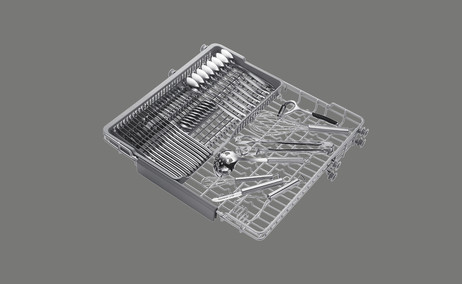

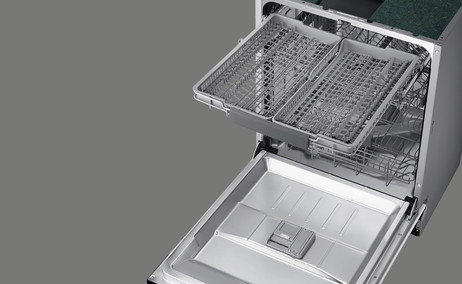

Cutlery: Third loading level
Interior lining: Stainless steel
interior lighting: -
Cleaning system: Rotating spray arm

Functions
Drying system: Drying + Automatic door opener

Programs / display
Number of washing programs: 7
Washing programs: Auto, ECO, Intensive, Short programme, Gentle Wash, Express, Self-clean
Options: Half load, hygienic washing, delay start, child safety

Safety
Aqua-stop hose: Yes
Leakage sensor: Yes
Child safety: Yes

Power and water supply
Electrical connection
Voltage: 230 V
Frequency: 50 Hz
Connection values: 1,8 kW
Fuse protection: 10 A
Length power connection: 1,5 m
Power plug: Schuko plug with CH adapter (type 12, 10A)
Water connection
Pressure hose G 3/4": Yes
Connectable to cold/hot water: max. 60° C
Water inlet: 1,5 m, flexible hose with Aqua-stop
Water outlet: 1,6 m, flexible hose

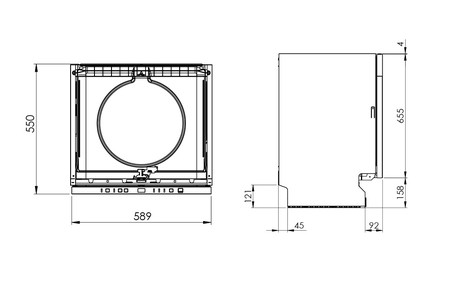

Technical data
Standard width: Euro-Norm 60 cm
Niche height: 820 -  880 mm
Niche width: 600 mm
Niche depth: min. 560 mm
Height for substructure: 817 - 877 mm
Depth with door open: 1250 mm
Max. door front weight: 10 kg
Unit width: 598 mm
Unit height: 817 mm
Unit depth: 550 mm
Salt funnel (incl): DD81-02921A

Packaging
Weight, incl. packaging: 51 kg
Packaging dimensions (H x W x D): 875 x 655 x 645 mm
