EVOline One T23 built-in socket outlet stainless steel
Version
black/stainless steel
Article no.
40.002.166.00
Price CHF
141.- H
excl. VAT
Product description
Technical data The built-in socket EVOline One is a compact power access point that can be harmoniously integrated into any design concept. And this on a very space-saving and discreet way. Whether in completely black design or with stainless steel inlay: Both versions can be easily exchanged thanks to the easily replaceable module inserts of the respective adjust requirement. The new, patented mounting system holds from a front thickness of 9 mm. The installation depth is 50 mm.

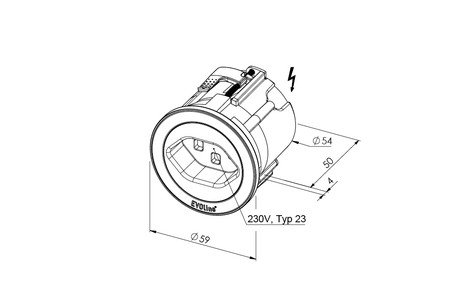

Supply voltage 230 V Rated current maximum 16 A Dimensions Ø 59 mm Dimensions Thickness 4mm Installation depth 50mm Orifice Bore Ø 54 mm Network connection Fixed mains cable 2.5 m, without mains plug (16 A, type 23 or direct connection) Mounting From the front

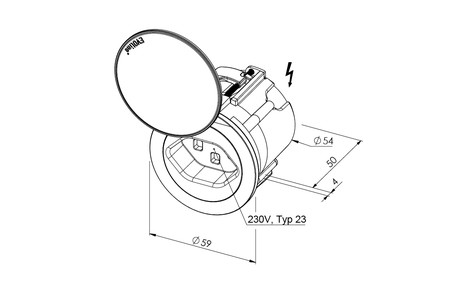

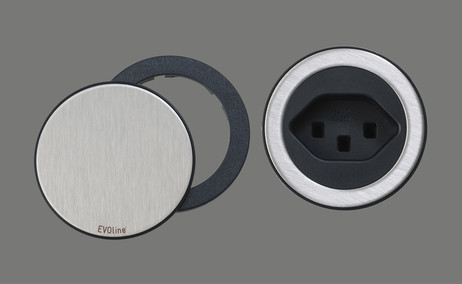

Scope of delivery - Socket, incl. connection cable 2.5 m - Ring without cover - Ring with cover (360° rotatable)
