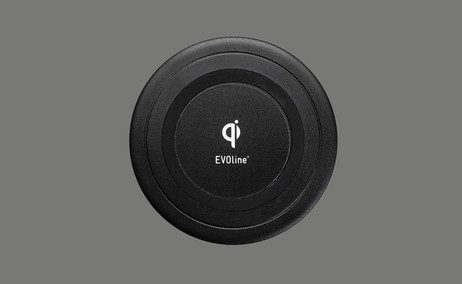

EvoLine Qi Charger: Qi charging station for integration into a worktop, plastic, black

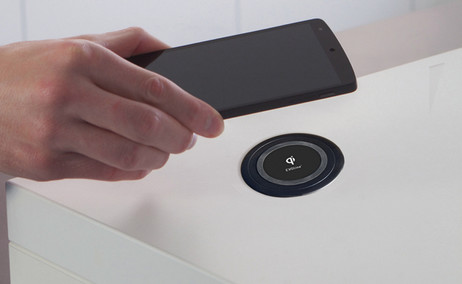

With the EVOline Qi Charger, all Qi-compatible devices can be charged on the same charging station without cables or accessories. It can be installed either under the worktop - so that the charging station is invisible - or attached to a standard opening with a diameter of 80 mm. The device to be charged is simply positioned in the appropriate place - pure minimalism. Charging is done inductively, i.e. the charging coil is only activated when it is connected to the device to be charged.

Scope of delivery
Qi charging coil according to WPC Spec. 1.2.2 "Qi".
USB power adapter with Euro plug, 1 m USB cable
Installation and operating instructions

Technical data
Operating voltage 9 V
Power consumption (operation) max. 10 W
Power consumption (standby) 0.2 W
Operating temperature 17° C - 25° C
Maximum operating temperature 0° C - 40° C
Installation depth (incl. plug) 28 mm
Installation / mounting: Invisible under the worktop or surface mounted

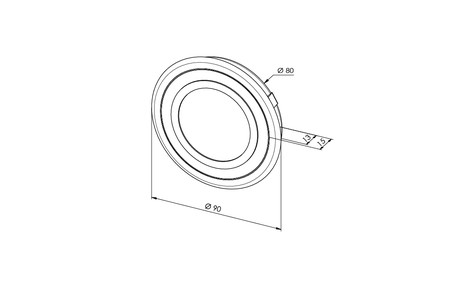

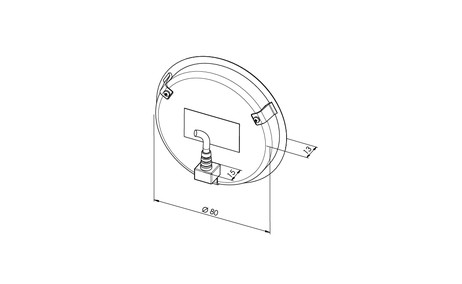

Concealed installation under the worktop: Surfaces must not be electrically conductive (e.g. metal, stainless steel). Recommendation for natural stone: Test before installation/milling, as it may contain traces of iron ore. The remaining thickness of the worktop should be a maximum of 3 mm at the cut-out (see drawing).

If necessary, remove the cover, shell, flap case or case of your smartphone so that wireless charging can work.
