Construction: Euro-Norm 60 cm
GTIN-Nr.: 8806094336559

Efficiency and consumption
Energy efficiency class (from A+++ to D): A+
Energy efficiency index: 81.6
Energy consumption
Energy consumption, conventional (kWh / cycle): 1,05 kWh
Energy consumption, convection / hot air (kWh / cycle): 0,71 kWh
Standby consumption: 1,9 W
Consumption pyrolytic cleaning process (kWh / cycle): -

Design
Color control panel: Onyx black
Material control panel: Glass
Frame / material: - / -

Display and operation
Display: Digital display
Display and lighting: LED, white
Operation: Rotary knobs, sensor buttons, WiFi

Interconnection of household appliances
Samsung Smart Home: WiFi Smart Things

Performance properties
max. adjustable temperature for top / bottom heat, convection / hot air: 250°C
Temperature for steam operation:--
Microwave power output -
Useable grilling space : 1860 cm2
Useable oven capacity: 76 L

Dimensions
Unit dimensions (H x W x D) : 596 x 595 x 570 mm

Empty weight
Unit weight: 33,8kg

Fittings
Inside dimensions (useable size) mm (height / width / depth): 375 x 465 x 400 mm
Top and bottom heat: Yes / Yes
Convection:-
Hot air: Yes
Steam: -
Microwave: -
Catalytic cleaning aid : Yes
Pyrolytic cleaning aid : -
Grill heating element available / retrofittable: Yes / -
Grill motor / convection grilling: -
Timer switch / timer: Yes
Drawer / warming drawer: - / optional
Number of cooking chambers: 1
Volume per cooking chamber
Single-chamber operation / top cooking chamber / bottom cooking chamber: 76 L / - / -
Number of shelf levels: 5
Lighting / inspection window: Yes / Yes
Lighting : 25W, halogen
Telescope rails: Single
Cleaning: Catalysis, steam cleaning
Cooling process: Cooling ventilator
Interior lining: Ceramic enamel

Operating modes
Steam: -
Steam + heating: -
Steam + hot air: -
Steam + top heat + hot air:-
Steam + bottom heat + hot air: -
Top / bottom heat: 30~250°C
Hot air: 30~250°C
Hot air ECO: 30~250°C
Grill: large / eco / convection: 100~270°C / 100~270°C / 100~250°C
Bottom heat + hot air: 40~250°C
Top heat + hot air: 40~250°C
Bottom heat   : 100~230°C
Fast cooking: -
Automatic roasting (ProRoasting) : -
Microwave + grill: -
Microwave + hot air: -

Programs
Special functions: Fast preheat, keep warm, defrost, heat dishes
Automatic programs: 20
Dual Cook: -

Control functions
Control functions: Time, child lock, cooking timer, end time, signal tone

Capacity
Total capacity: 3500 W
Hot air : 1800 W
Grill max. / min.: 1600 / 1100 W


Electrical connection
Supply voltage g: 230 V
Frequency : 50 Hz
Connection values: 3.5 kWh
Fuse protection: 16 A
Length power connection: 1,4 m
Power plug: Schuko safety plug with CH adapter (16 A, type 23) or direct connection

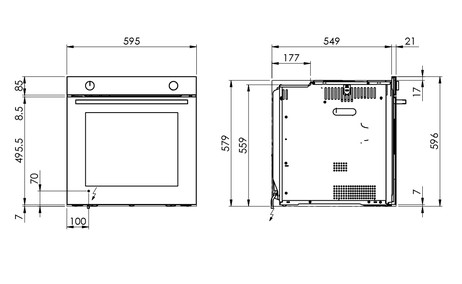

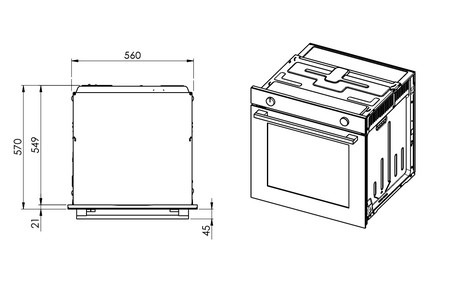

Technical data
Standard width: Euro-Norm 60 cm
Standard height: Euro-Norm 60 cm
Niche height: 590 mm - 600 mm
Niche width: 560 - 568 mm
Niche depth: min. 555 mm
Unit width in mm : 595 mm
Unit height in mm: 596 mm
Unit depth in mm: 570 mm

Packaging
Weight, incl. packaging: 37.5 kg
Packaging dimensions (H x W x D): 660 x 694 x 660 mm
