GTIN no: 8801643237097

Efficiency and consumption
Energy efficiency class (from A++ to E): C
Annual energy consumption (kWh): 60 kWh
Fluid-dynamic efficiency class (from A to G): E
Lighting efficiency class (from A to G): E
Grease separation class (from A to G): C

Design and operation
Housing color / material: Stainless steel
Operation: Push buttons

Performance capacity:
Ventilation capacity :
Exhaust air (m3/h): min. 242 m3/h / max. 361 m3/h
Intensive level: -
Max level: 361 m3/h
Min. level: 242 m3/h
Circulating air (m3/h): min. 237 m3/h / max. 324 m3/h
Intensive level: -
Max. level: 324 m3/h
Min. level: 237 m3/h
Pressure capacity (Pa): min. 282 Pa / max. 305 Pa
Intensive level: -
Max. level: 305 Pa
Min. level: 282 Pa

Sound power level
Intensity level: -
Max. level: 61 dB(A)
Min. level: 54 dB(A)

Fittings

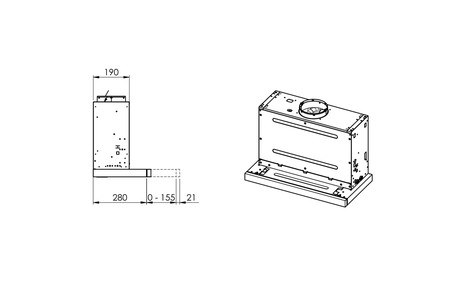

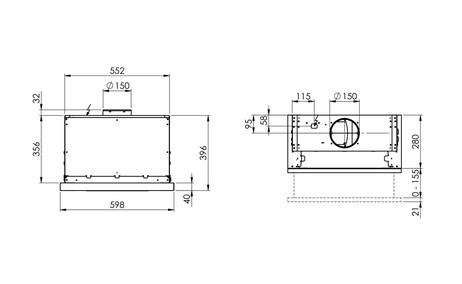

Height exhaust air / circulating air: 39,6 cm
Width: 59,8 cm
Depth: 30,1 cm
Depth with pull-out: 45,6
min. clearance above cooking surface: 50 cm

Empty weight
Unit weight: 11,2 kg

Fittings
Exhaust air vent, diameter: 150 mm
Exhaust air vent, position: Above
Operating mode exhaust air / circulating air: Yes / yes (air circulation filter included in the scope of delivery)
Number and type of grease filters: 2, aluminum filters
Timer: -
Operation: Push buttons
Power levels: 3
Intensity level: -
Follow-up function: -
Filter saturation indicator (activated carbon filter, circulating air): -
Motor (number): 1
Automatic connectivity - combined control of cooktop and hood: -

Grease filter
Material grease filter: Aluminium
Number of grease filters: 2
Dishwasher-proof: Yes
Filter cleaning indicator: -

Operation
Internal / external: Yes / -
Number of power levels: 3
Power control (electr./electro-mech.): electro-mechanical

Lighting
Lighting levels: 1
Illuminants: LED
Number and capacity of illuminants: 2 x 3 W

Motor capacity
Motor capacity: 120 W

Electrical connection
Supply voltage: 230 V
Frequency: 50 Hz
Connection values: 0.55 KW
Fuse protection: 10 A
Length power connection: 1,4 m
Power Plug: Schuko safety plug with CH adapter (10 A, type 12)

Packaging
Weight incl. packaging: 12,9 kg
Packaging dimensions (H x W x D): 511 x 699 x 396 mm
