Model
Appliance type / construction type
Energy efficiency class
Door hinge
Manufacturer ID
VRG
Article no.
Price CHF
Highlights
- Auto Cycle Link - with compatible washing machine suggests dryer suitable programme
- AI Control (KI) - Intelligent drying
- Condensation water drainage optionally via water tank or drain pipe
- Networking with Smart Things App
- 2-in-1 filter – quick cleaning
- Wrinkle protection
- 8 kg drum capacity
- Drum lighting
- OptimalDry system – sensor-regulated temperature
Product description
Type of device: Heat pump dryer, condenser, Euro-Norm 60 cm
GTIN-Nr.: 8806090604737
Planning guidelines
13 languages available, including Braille (English, Dutch, Danish, Finnish, French, German, Icelandic, Italian, Norwegian, Portuguese, Spanish, Swedish, Turkish)
Minimum clearance for proper operation:
sides: 25 mm, top: 25 mm, rear: 50 mm, front: 550 mm
Consumption
Energy efficiency class (from A+++ to D): A+++
Annual energy consumption: 176 kWh
Energy consumption
Standard program full / half load: 1,41 kWh / 0,80 kWh
Standby on / off: 5 W / 0,5 W
Design
Housing color: White
Door color: Carved Black
Display and operation
Indicator: Control panel AI Control incl. Braille
Display: AI Control
Operation:Touch control & rotary knob
Language display program selection (preset): 13 languages available, including Braille
Interconnection of household appliances:
Samsung Smart Home: Smart Things App
Performance properties
Average duration standard program: 160 min
Duration standard program full / half: 200 min / 130 min
Automatic switch-off time: After 10 min
Condensation efficiency class (from A to G): B
Average condensation efficiency, standard program:87%
Sound power level:63 dB(A)
Mounting type
Freestanding with worktop: Yes
Freestanding undercounter: -
Undercounter unit (without worktop): -
For washer/dryer tower: Yes
For wall mounting: -
Door hinge: Right (reversible)

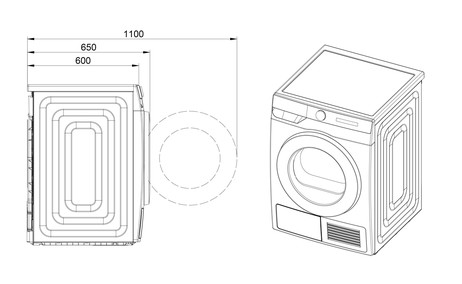

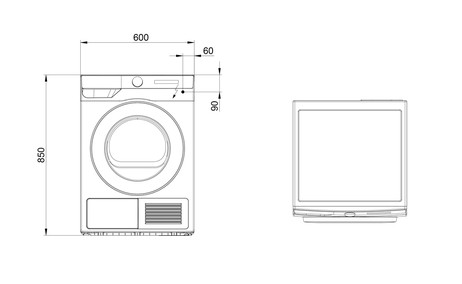

Dimensions
Unit dimensions (H x W x D):850 x 600 x 650 mm
Unit depth (incl. wall clearance):700 mm
Unit depth with door open (incl. wall clearance):1150 mm
Adjustable height: max. 30 mm
Empty weight
Unit weight:50 kg
Fittings
OptimalDry System:Yes
Wrinkle protection:Yes
Drum type: Diamant
Drum volume:115 l
Drum lighting: Yes
Drying basket: -
Drying sensor: Yes
Drying time selectable: Yes
Drying level adjustable: 3 levels
Lint filter: Yes, 2-in-1
Filter cleaning sensor: Yes
Quick drying (60% residual moisture): Yes
Refrigerant: R134a
Functions
SmartCheck: -
Water tank check: Yes
WiFi SmartControl: Yes
Programs / Display
Drying programs: Iron dry, cotton, delicates, towels, shirts, airing cold, airing warm, mixed laundry, outdoor, easy care, Super short 35' (Quick Dry), wool, XXL laundry, time drying
Buttons on display:On / Off, navigation wheel, start/pause, display, OK, Drying stage, Crease protection, duration, additional functions, Smart Control
Indicators: Drying programme, loading recommendation, remaining programme time, Drying stage, crease protection, end time, WLAN, Smart Control, Child safety
Child safety:Yes
Drying control
Time selection: -
Automatic with electronic moisture detection: Yes
Power connection / condensation drain
Electrical connection
Supply voltage: 230 V
Frequency: 50 Hz
Connection values: 1,1 kW
Fuse protection:10 A
Length power connection: 1,5 m
Power plug:with plug type 12, 10 A
Condensation drain
Individual condensation drain: Integrated condensation container or direct condensation drain (waste water connection)
Drain hose G ¾":2.0 m, included in the scope of delivery
Packaging
Weight, incl. packaging: 54 kg
Packaging dimensions (H x W x D):895 x 670 x 695 mm
Accessories
Downloads
Availability
Compatible Articles
Washing machine WM120
Combination set SKK-DF washer/dryer tower SKK-DF WM120, WM130, WM40
Article no.
Price CHF
Combination set SKK-UDW washer/dryer tower with pull-out WM120
Article no.
Price CHF
Spares
Lint filter
Article no.
Price CHF
Lint filter interior
Article no.
Price CHF
